Standard Ceiling Tile 601
Standard Ceiling Tile 601 is a smooth-finish fiberglass ceiling panel for commercial interiors. The UET product handbook presents square-edge and tegular-edge options for modular ceiling layouts. Review the selected size, edge, acoustic requirements and supporting documents before specification or ordering.
Standard Ceiling Tile 601 Specifications
| Specification | Standard Ceiling Tile 601 |
| Product code | 601 |
| Material | Glass fiber substrate |
| Surface | Smooth finish; handbook lists natural stone powder as the surface coating |
| Edge options | Square edge; tegular edge |
| Panel sizes in the performance table (15 mm) | 600 × 600 × 15 mm; 600 × 1200 × 15 mm |
| Additional sizes listed in the packing table (20 mm) | 600 × 600 × 20 mm; 600 × 1200 × 20 mm |
| NRC | 0.85 |
| Fire classification | A2 |
| Moisture resistance | RH99 |
| Light reflectance | 0.9 |
Project Applications to Consider
The UET product handbook recommends Standard Ceiling Tile for the following settings. Confirm the selected panel configuration against each project’s ceiling layout, acoustic requirements, and maintenance needs.

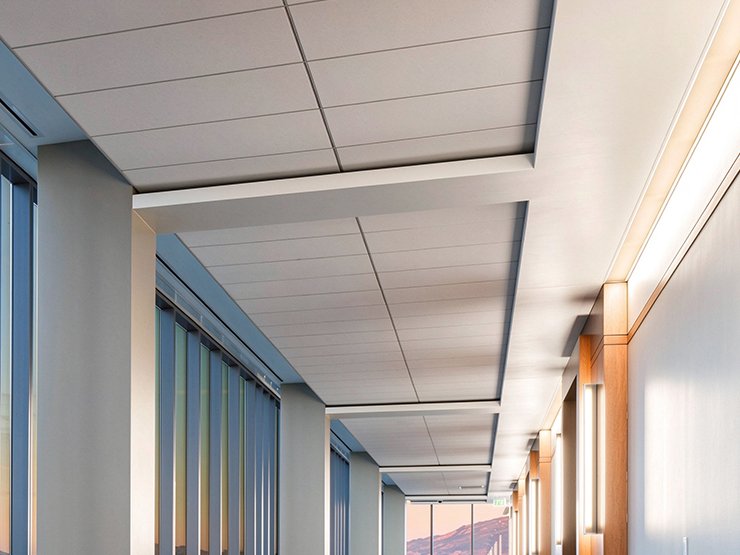

Retail Stores
Consider the ceiling finish, store layout, and acoustic requirements when selecting the panel configuration.
Shopping Malls
Coordinate the panel edge and ceiling module with the design and maintenance needs of shared shopping areas.

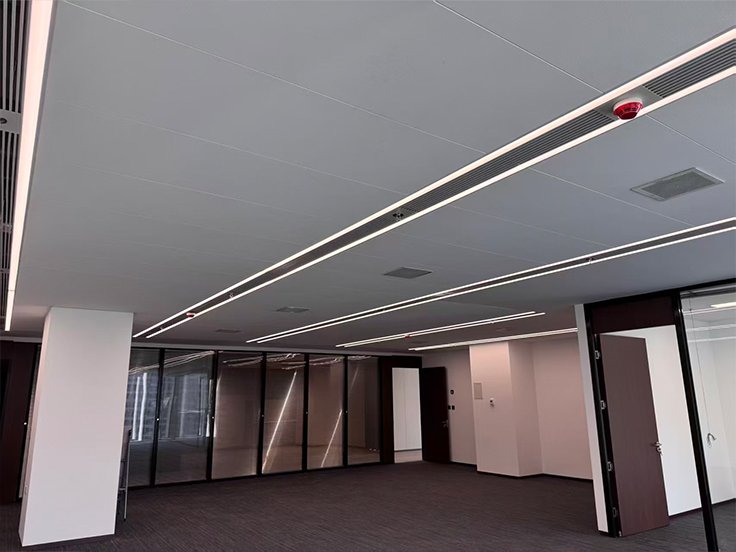

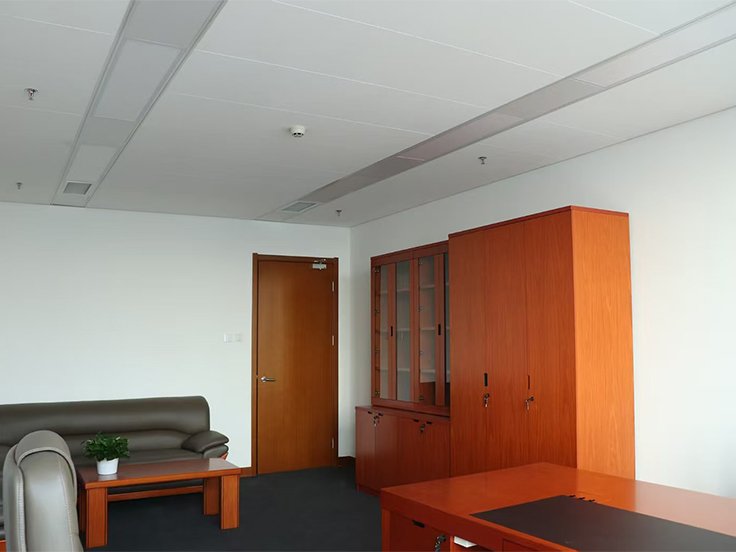

Offices
Review the room’s acoustic objectives, ceiling layout, and access to services above the ceiling.
Schools
Consider the ceiling finish, store layout, and acoustic requirements when selecting the panel configuration.
Public Areas
For other shared public spaces, confirm the selected panel’s configuration and current documentation against the project requirements.
Lobbies
Select the surface finish and ceiling configuration to suit the lobby design and maintenance plan.
Installation & Compatibility
Before specifying Standard Ceiling Tile 601, confirm the available panel size, square or tegular edge, compatible suspension grid, and installation conditions against the project drawings and current product documents.
Product Documents & Inquiry
For a Standard Ceiling Tile 601 inquiry, share the required panel size, edge, quantity, project location, and any ceiling drawings or specifications. Contact UET Ceilings to confirm current availability, technical documents, and ordering details.
